Perforated Access Floor System

Ask Lasest Price
Certification :	CE, ISO
Supply Ability :	200000

Add to Cart

Product Details
Company Profile

Perforated Access Floor System

Product Description

OYANA Company is mainly producing OA networt raised floor, perforated panel. Cement filling steel raised floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.

OYANA Computer Room Equiqment Co.,Ltd is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous
supplier in demostic market.so we are would like to share with you.

OYANA Company makes a contribution for products especially on peforated steel raised floor and Calcium Sulphate raised floor.

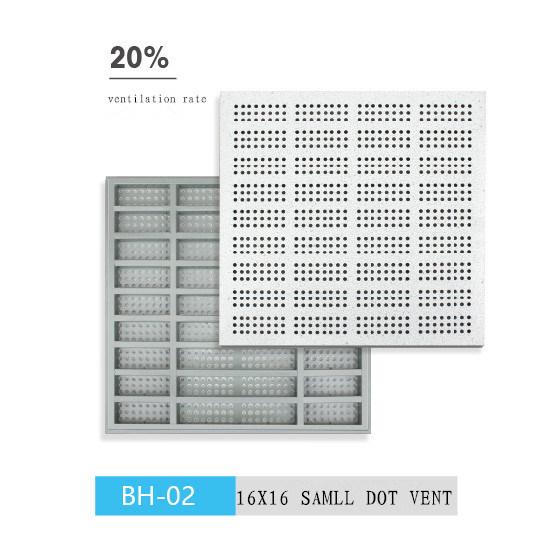

The picture on the right shows us many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled
steel plate

Pay attention,Pay attention,we can OEM

Perforated Access Floor System
We make different ventilation rate plate for our customers from all global countries. Not only beacause our products' quallity has been reconized by our customers,The most important thing is that we love this job and respect it. passion will keep us moving forward.The better products are waiting for us.
we can OEM,we can OEM

TEST REPORT
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd
Product Name:Anti-static Raised Access Floor
Model: HDG.600*600*35mm(FS670)
Date: Mar.7^th,2021
Quantity of samples: 1PS Panel + 1PS HPL

Testing Environment	Temperature: 25ºC
	Relative: 45%RH

Test result summary table for panel

TEST ITEMS	SPECIFICATION		TEST RUSELTS
1.System Resistance	Conductive: < 1.0x10⁶Ω
	Dissipative: 1.0x10⁶Ω - 1.0x10¹⁰Ω		7.28X10⁸Ω

2.Mechanical properties	Point Load: =300N(30Kg)	Deflection:	Centre: =0mm	Centre of edge =0mm
		Permanent Deflection:	Centre: =0mm	Centre of edge =0mm
	Point Load: =3000N(300Kg)	Deflection:	Centre: ≤1.5mm	Centre of edge ≤1.6mm
		Permanent Deflection:	Centre: ≤1mm	Centre of edge ≤1mm
	Uniform Distributed Load: =20000N/M²		Deflection: ≤0.05mm	Permanent Deflection: ≤0.05mm
	Ultimate load:		9850N
	Rolling load: 10times/10000times		2946N/2356N
	Impact load:		4600N
combustion performance	Grade:A1_fl

Test result summary table for Anti-static Laminate(HPL)

Product Name:Anti-static Laminate

size: HDG.600*600*1.2(mm)

Date: Nov.17^th,2021

TEST ITEMS	SPECIFICATION	TEST RUSELTS
Surface Resistance:	1.0x10⁴-1.0x10⁹Ω	4.74X10⁸Ω
Volume Resistance:	1.0x10⁴-1.0x10⁹Ω	1.98X10⁸Ω
Wear Proof Property:	Ultra-high wear properties≥3000r	3400r
Combustion Performance	Finishing Material: HPL≤30S Grade:FV-1	29.80S

Actual installation rendering below :
This kind of flooring is widely used in Electronic Workshops and other places needed ventilation requirements.

Our andvantage is designing new products for you .we have engineers to devolop and share experience with you.

Perforated Access Floor System
